Cannon Afb Airport (CVS) Information

Clovis, NM

All Airports in New Mexico    All Airports in United States    Home

CVS



Latest photos of Cannon Afb Airport (CVS)
  • Cannon Afb Airport (CVS) - Col John O Tinius, USAF, welcomed to Cannon AFB, NM. Probably 1974.
Col Tinius flew the F-86 on 41 combat missions in Korea and remained on flight status for almost his entire career, retiring in 1976.
 - by Unknown by Unknown

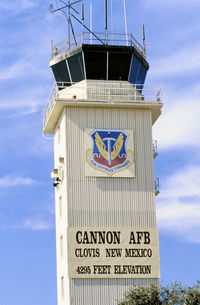

  • Cannon Afb Airport (CVS) - Copied from slide. - by kenvidkid by kenvidkid
Have a photo of this airport? Share with others.

Location & QuickFacts

FAA Information Effective:2013-12-12
Airport Identifier:CVS
Airport Status:Operational
Longitude/Latitude:103-19-19.7075W/34-22-57.9595N
-103.322141/34.382767 (Estimated)
Elevation:4295 ft / 1309.12 m (Surveyed)
Land:0 acres
From nearest city:5 nautical miles W of Clovis, NM
Location:Curry County, NM
Magnetic Variation:10E (1985)

Owner & Manager

Ownership:Air Force owned
Owner:Maprusaf
Address:27th Cs Gp Tac/otm Cannon Afb
Clovis, NM 88101
Phone number:575-784-2801
Manager:Base Operations
Address:27th Cs Gp Tac/otb Cannon Afb
27th Cs Gp Tac/otm Cannon Afb
Phone number:575-784-2801

Airport Operations and Facilities

Airport Use:Private
Segmented Circle:No
Control Tower:Yes
Lighting Schedule:SS-SR
Beacon Color:Clear-Green (lighted land airport)
Sectional chart:Albuquerque
Region:ASW - Southwest
Boundary ARTCC:ZAB - Albuquerque
Tie-in FSS:ABQ - Albuquerque
FSS on Airport:No
FSS Toll Free:1-800-WX-BRIEF
NOTAMs Facility:CVS (NOTAM-d service avaliable)
Federal Agreements:3

Airport Services

Airframe Repair:MAJOR
Power Plant Repair:MAJOR

Runway Information

Runway 04/22

Dimension:10003 x 150 ft / 3048.9 x 45.7 m
1ST 1200' RWY 13 HAS RUF CONCRETE.
Surface:CONC,
1ST 1200' RWY 13-31 CONCRETE, MID 5800' ASPHALTIC CONCRETE.
Pavement Class:56 /R/B/W/T
Edge Lights:High
  Runway 04 Runway 22
Longitude:103-19-54.8707W103-18-30.4662W
Latitude:34-22-36.2318N34-23-46.1630N
Elevation:4275.00 ft4295.00 ft
Alignment:45127
ILS Type:LOC/GS LOC/GS
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:41.00 ft33.00 ft
VASI:4-light PAPI on left side4-light PAPI on left side
Visual Glide Angle:2.50°2.60°
RVR Equipment:touchdowntouchdown
Approach lights:ALSF1ALSF1
Centerline Lights:NoNo
Touchdown Lights:NoNo

Runway 13/31

Dimension:8196 x 150 ft / 2498.1 x 45.7 m
1ST 1200' RWY 13 HAS RUF CONCRETE.
Surface:PEM,
1ST 1200' RWY 13-31 CONCRETE, MID 5800' ASPHALTIC CONCRETE.
Pavement Class:46 /R/B/W/T
Edge Lights:High
  Runway 13 Runway 31
Longitude:103-20-02.9231W103-18-53.8093W
Latitude:34-23-10.5287N34-22-13.2073N
Elevation:4293.00 ft4266.00 ft
Alignment:127127
ILS Type:LOC/GSLOC/GS
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:37.00 ft41.00 ft
VASI:4-light PAPI on left side4-light PAPI on left side
Visual Glide Angle:3.00°3.00°
Approach lights:SSALRSSALR
Runway End Identifier:NoNo
Centerline Lights:NoNo
Touchdown Lights:NoNo

Remarks

RSTD: DEP ACFT RSTD TO 5300' TIL PASSING DEP END OF RWY.
CAUTION: VEH TFC ON ROAD (15' AGL), APRX 1200' FR APCH END RWY 13.
SERVICE-LGT: GATED THLD LGT ON ALL RWY FOR FTR ACFT.
CAUTION: APRX 20' AGL AG IRRIGATION EQPT LCTD APRX 2000' FR RWY 13-31 APCH ENDS.
BEARING STRENGTH RWY 04/22: ST175 SBTT700 DDT780.
BEARING STRENGTH RWY 13/31: ST165 SBTT340.
CAUTION: CLOVIS MUNI 13 NM NE. PORTALES MUNI 14 NM SSW.
CAUTION: BASH PHASE II IN EFF 1 OCT-10 NOV, 12 MAR-22 APR AND 1 JUN-31 JUL.
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
JASU: (MD-3) (AM32A-60A).
FUEL: J8.
FLUID: SP PRESAIR LPOX LOX.
OIL: O-148 SOAP.
SERVICE-TRAN ALERT: AVBL 1400-0600Z++ MON-FRI, 1300-2100Z++ SAT-SUN.
RSTD: HVY ACFT EXP RGT 180° TURN RWY 22 AND 31 AND LEFT 180° TURN RWY 04 AND 13.
SERVICE-LGT: RWY 04/22 AND RWY 13/31 ILS GS/RPI AND PAPI GS/RRP NOT COINCIDENTAL.
RSTD: NO LESS THAN 24 HRS PRIOR AND NO MORE THAN 15 DAYS PRIOR, CTC DSN 681-2801, C575-784-2801, FAX EXTN 4658. ALL ACFT MUST ADHERE TO PPR +/-30 MIN OR PPR IS INVALID.
MISC: WX BRIEFING FOR TRAN AIRCREW BYD NML OPR HR AVBL VIA 25 OWS AT DAVIS-MONTHAN AFB DSN 228-6598/6599/6588 C520-228-6598/6599.
MISC: AFLD WX OBS SENT BY AN/FMQ19 AUTOMATED OBSN SYS; AUGMENTED BY HUMAN OBSERVER DURG AFLD OPN HRS. OBSN SITE LTD 000-070 DEGS DUE BLDG; NGT OBSN LTD DUE HI INTS RAMP LGT.
MISC: FIRE FIGHTING CAPABILITIES LTD CAT 8-10 ACFT. RECOMMEND UNITS ASK FOR CURRENT CAPABILITY WHEN REQUESTING PPRS.
AERODROME OFFL BUS ONLY (OBO) FIRST MON OF THE MONTH.
SERVICE-TRAN ALERT: AM32A-60 SUPPORT EQPT INCOMPATIBLE WITH EA6 ACFT.
CAUTION: UAS ACT WITHIN CLASS D AIRSPACE AND BTN CLASS D AIRSPACE AND R5104.
MISC: CLASSIFIED STOR FOR TRAN AIRCREW UNAVBL AT AFLD MGMT OPNS BUT IS AVBL AT COMD POST.
RSTD: ALL HOLDING APRON TAXI-LINES RSTD TO ACFT WITH WHEELBASE OF MORE THAN 14'.
CAUTION: TACAN GND NAV CK PT INCORRECT ON RWY 22.
CAUTION: MIL NVD OPS MAY BE CONDUCTED IN VCNTY OF AFLD ANYTIME BTN SS AND SR.
CSTMS/AG/IMG: CUSTOMS SVC UNAVBL.
MISC: DV GRADE 0-6 AND ABOVE OR CIV EQUIVALENT AND ROTATORS CTC AFLD MGT VIA PTD 372.2 AND COMD POST UHF WHEN 100 NM OUT WITH ETA AND DV REQS.
RSTD: TRAN C17 AND C135 APV FOR TOUCH-AND-GO LDG.
RSTD: HVY ACFT REQ TOUCH-AND-GO COORD WITH AFLD MGMT.
RSTD: TWY B RSTD TO C130 WITH WEIGHT OF 147,000 LBS OR LESS.
CAUTION: POTENTIAL EXISTS FOR HYDROPLANING ON RWY 13-31 ASPHALT INTERIOR PORTION. FOR ALL RWY EXP 30-45 MIN RWY SUSPENSION AFTER HVY ACFT ARR/DEP DUE FODON RWY.
RSTD: DELTA COMBAT ACFT PRK AREA (CAPA) LTD TO LCL ASSIGNED ACT WITH WINGSPANS 133' OR LESS WHEN IN USE.
RSTD: RWY 13 LTD TO FULL STOP LDG ONLY WHEN DELTA COMBAT ACFT PRK AREA (CAPA) IN USE.
RSTD: RWY 31 LTD TO EMERG USE ONLY WHEN DELTA COMBAT ACFT PRK AREA (CAPA) IN USE.
CAUTION: TWY EDGE LGTS 15' FROM MARKED, STRESSED PAVEMENT ON TWY D AT INT OF TWY R.
CAUTION: REDUCED WINGTIP CLNC FOR C130 ACFT IN PRK ROW DELTA-INDIA (24') AND PRK ROWS LIMA-PAPA (15').
CAUTION: WARNING, LOADED ACFT PARKED IN PROXIMITY OF APCH END RWY 31.
RSTD: TRAN B1 APV FOR TOUCH-AND-GO LDG UP TO BUT NOT MORE THAN 250K GWT.
SERVICE-OIL: OIL SVC UNAVBL FOR MIL-7808 OIL.
MISC: CLASSIFIED STORAGE FOR TRANSIENT AIRCREW UNAVBL AT AFLD MANAGEMENT OPS. CTC COMD POST FOR STORAGE.
RSTD: ALL TRAN MIL ACFT PERFORMING PRACTICE APCH/PAT WORK MUST HAVE PPR.
CAUTION: BIRD HAZ: SEWAGE LAGOON AND LAKE LCTD 1/2 NM SE OF RWY 22 APCH END.
